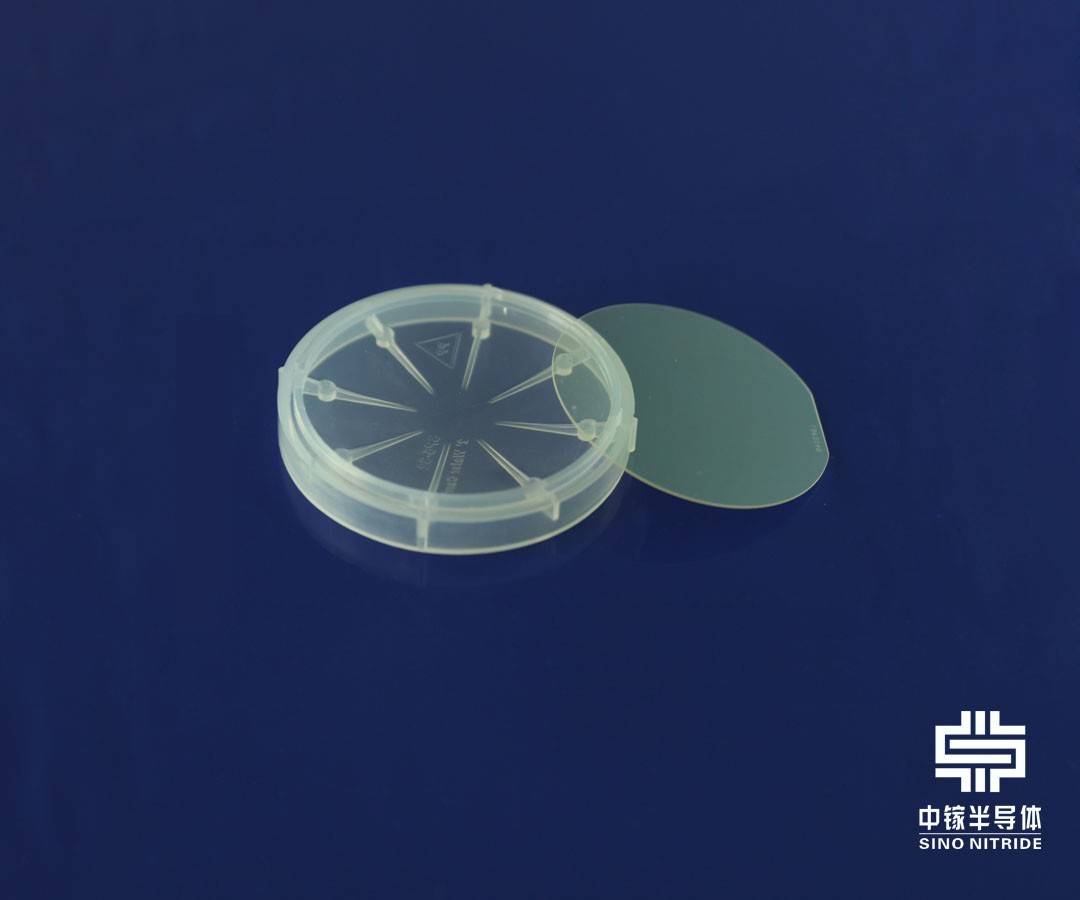

6英寸氮化鎵Template
GaN/ Al2O3 Substrates (6")
產品型號 Item | ST-ncY-Φ150 | ST-ncZ-Φ150 | ST-ncH-Φ150 | ||
尺寸 Size (mm) | Φ150.0±1.0 (6") | ||||
襯底結構 Substrate Structure | GaN on Sapphire(0001) (Standard: SSP Option: DSP) | ||||
厚度 Thickness (μm) | 4.5±0.5; 20±2; Customized | ||||
導電類型 Conduction Type | Un-doped N-type | N-type | High-doped N-type | ||
電阻率 (300K) Resistivity (Ω·cm） | ≤0.5 | ≤0.05 | ≤0.01 | ||
GaN厚度不均勻性 GaN Thickness Uniformity | ≤±15% (6") | ||||
錯位密度 Dislocation Density(cm-2) | ≤5×108 | ||||
有效面積 Useable Surface Area | ＞90% | ||||
包裝 Package | Packaged in a class 100 clean room environment. | ||||
