產品型號 Item | ST-ncY-Φ50 | ST-ncZ-Φ50 | ST-ncH-Φ50 | |
尺寸 Size (mm) | Φ50.8±0.5 (2") | |||
襯底結構 Substrate Structure | GaN on Sapphire(0001) (Standard: SSP Option: DSP) | |||
厚度 Thickness (μm) | 4.5±0.5; 20±2; Customized | |||
導電類型 Conduction Type | Un-doped N-type | N-type | High-doped N-type | |
電阻率 (300K) Resistivity (Ω·cm） | ≤0.5 | ≤0.05 | ≤0.01 | |
GaN厚度不均勻性 GaN Thickness Uniformity | ≤±5% (2") | |||
錯位密度 Dislocation Density (cm-2) | ≤5×108 | |||
有效面積Useable Surface Area | ＞90% | |||

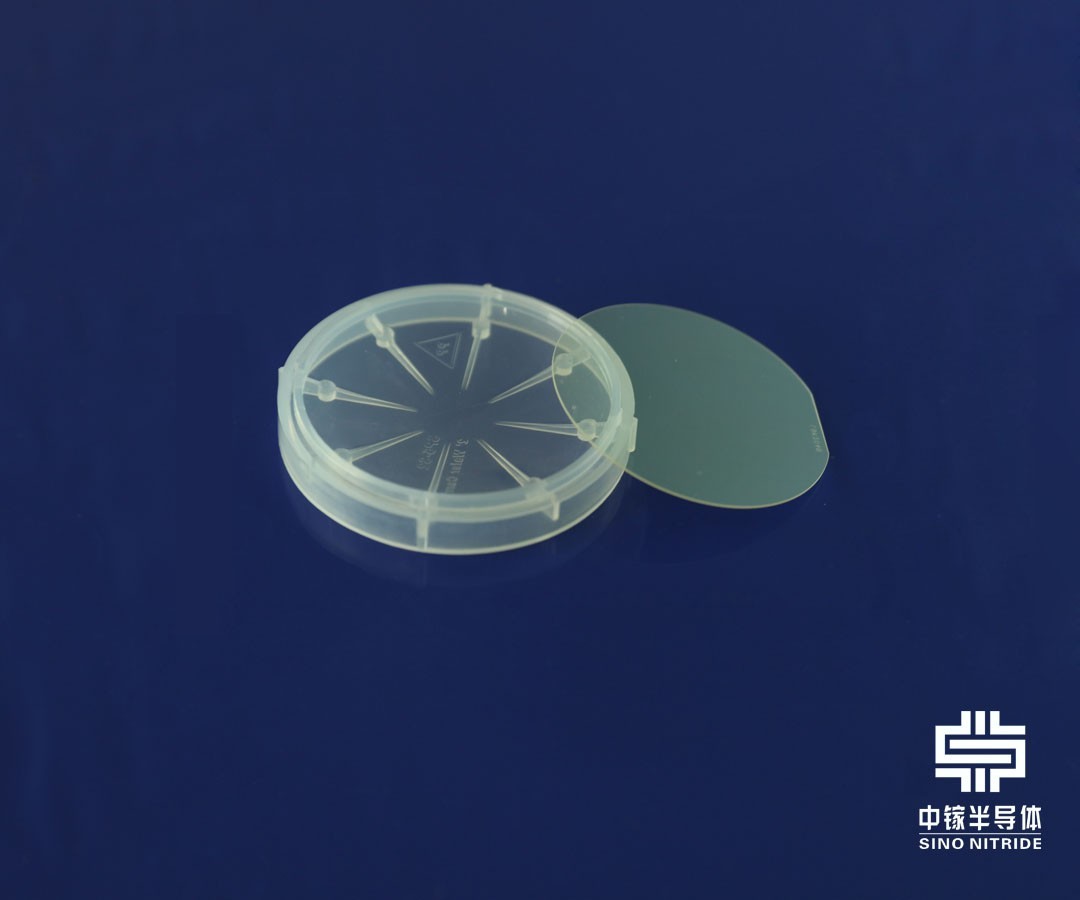

包裝 Package | Packaged in a class 100 clean room environment. | |||
